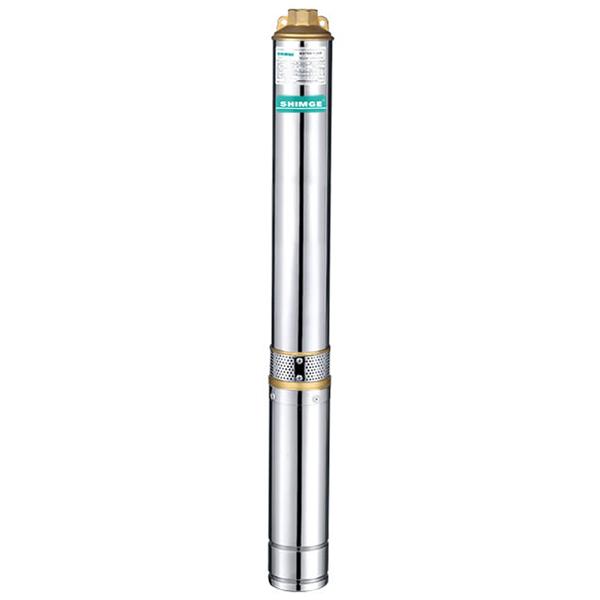

3SG(m) 3' Deep Well Pump

3SG(m) 3" Deep Well Pump

Performance Range

Max. Flow: 3.6m3/h
Max. Head: 142m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content (in mass fraction) up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/Domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Edible oil filled motor, stable& reliable running with pressure regulating membrane;
  • Single phase motor equipped with start box which is built in capacitor ¤t mode thermal protector, convenient for replacement;
  • Pump sleeve with screw thread, single stage floating impellers;
  • Installation in 3" or larger boreholes.
Optional Available On Request

Oil chamber is available with Brass or SS304; Discharge chamber, Inlet parts are available with Casting or SS304.

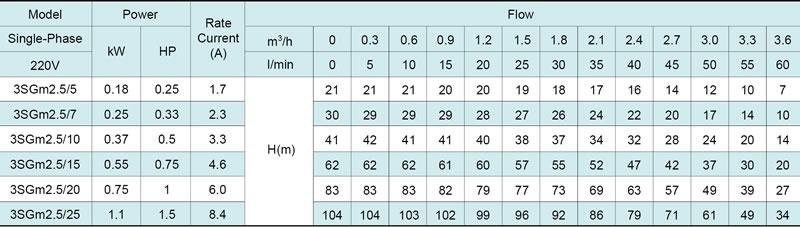

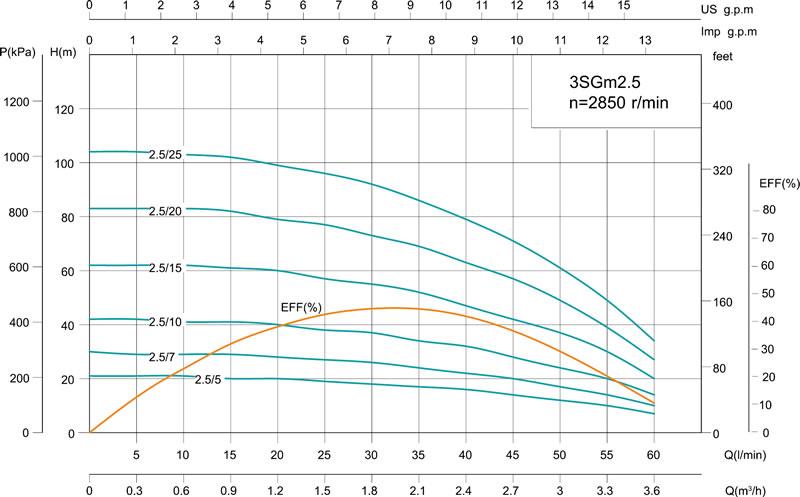

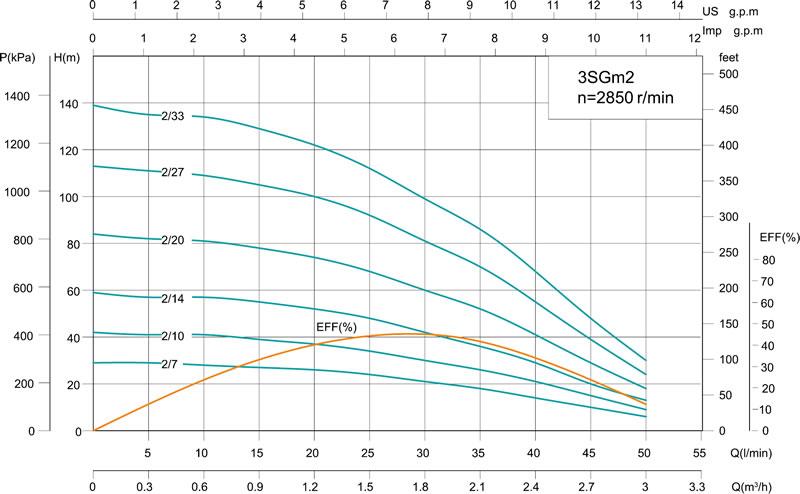

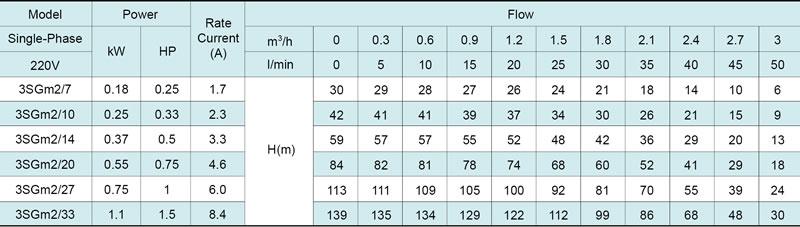

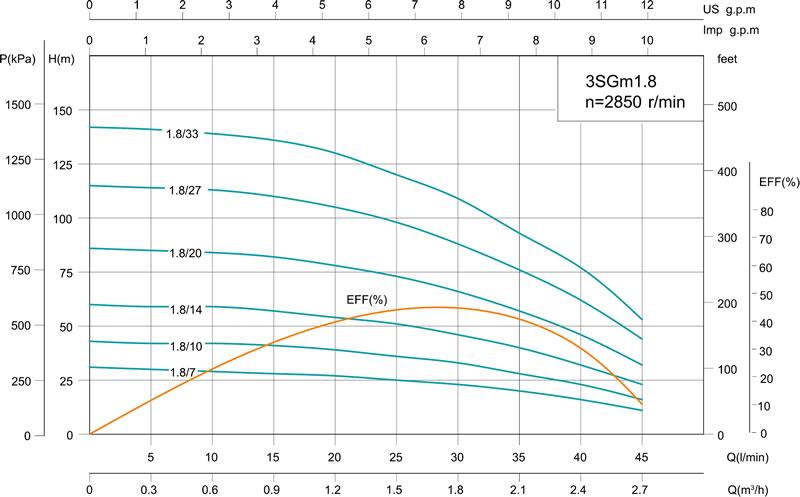

Performance Curve
3SG(m) 3' Deep Well Pump
3SG(m) 3' Deep Well Pump
3SG(m) 3' Deep Well Pump
3SG(m) 3' Deep Well Pump
3SG(m) 3' Deep Well Pump
3SG(m) 3' Deep Well Pump
