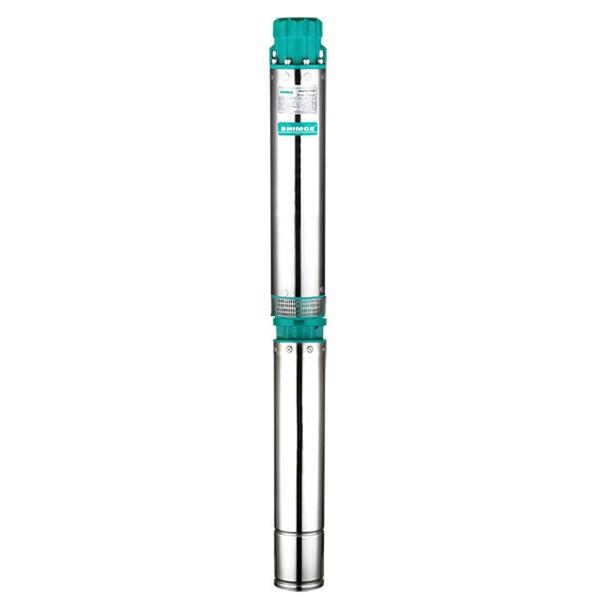

6SE 6' Deep Well Pump

6SE 6" Deep Well Pump

Performance Range

Max. Flow: 60m3/h
Max. Head: 448m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content(in mass fraction)up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Edible oil filled motor, stable& reliable running with pressure regulating membrane;
  • Available with pump casing with plug, integrated stage floating impellers;
  • Installation in 6" or larger boreholes.
Optional Available On Request

No

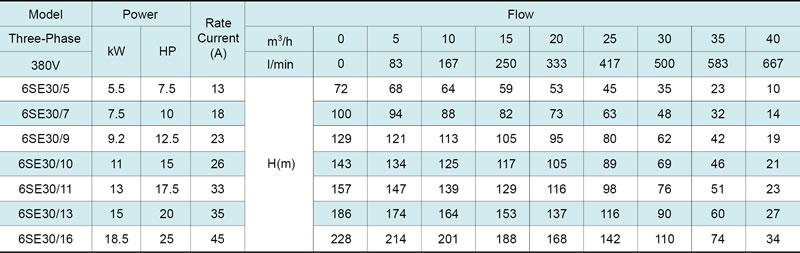

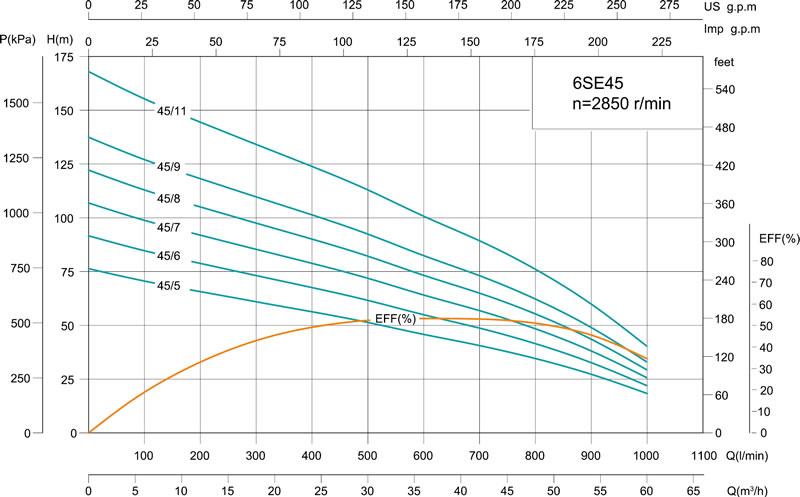

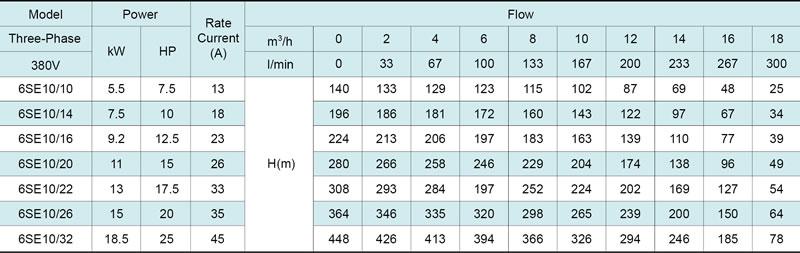

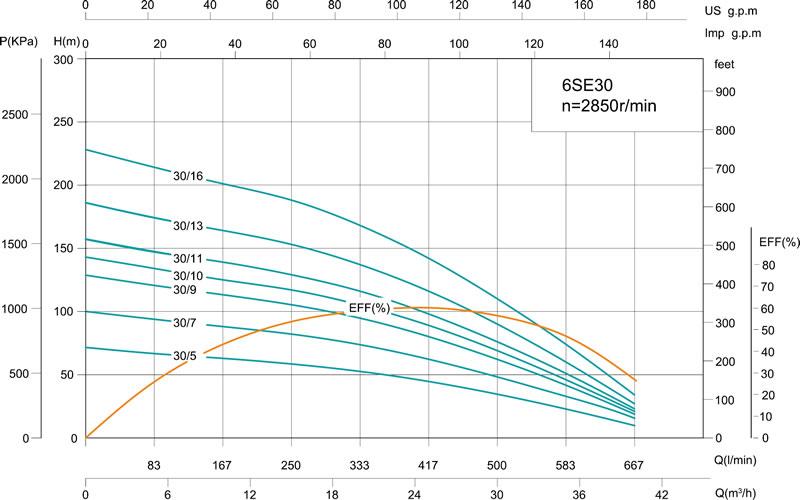

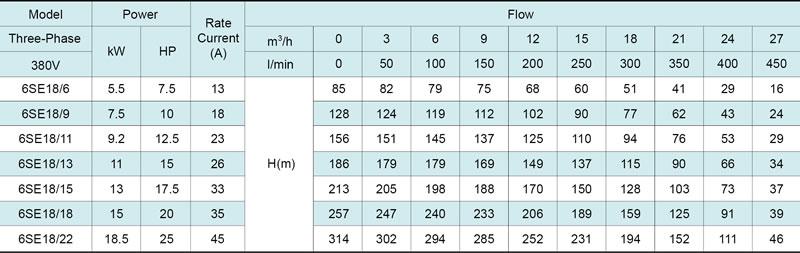

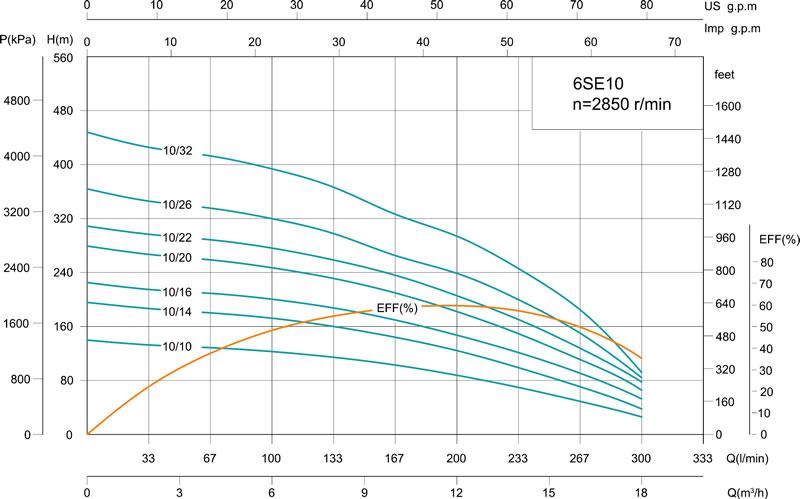

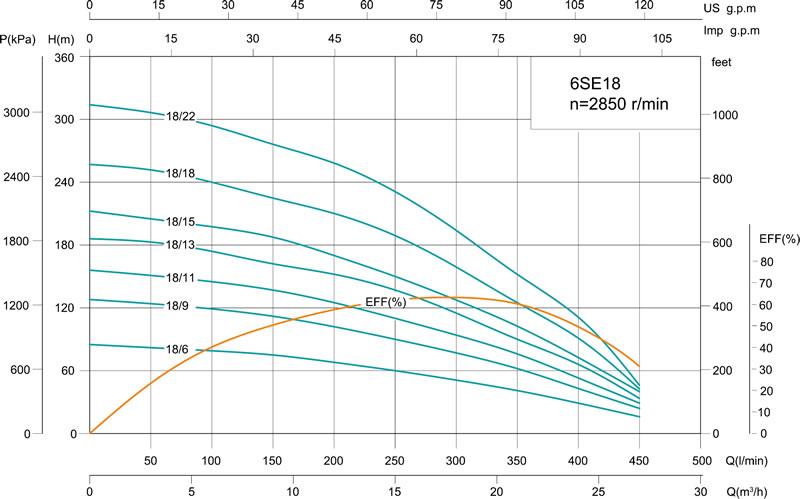

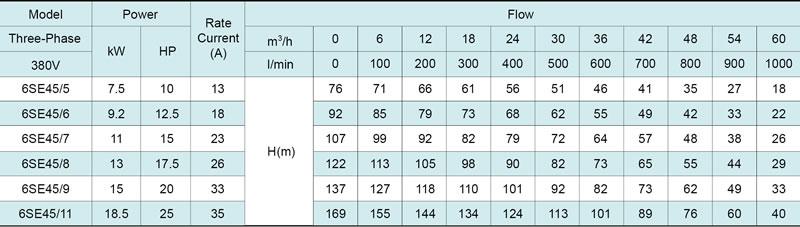

Performance Curve
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
6SE 6' Deep Well Pump
