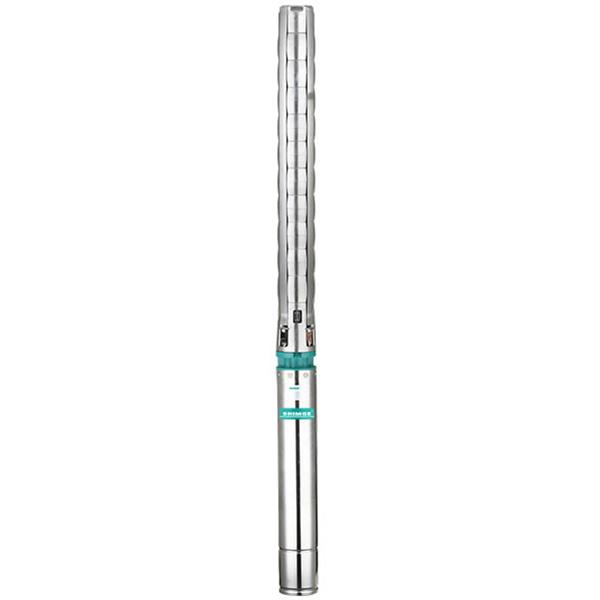

6SS 6' Deep Well Pump

6SS 6" Deep Well Pump

Performance Range

Max. Flow: 78m3/h
Max. Head: 283m

Application Limits
  • Max. ambient temperature < 40℃;
  • Sand content(in mass fraction)up to 0.01%;
  • Hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • pH 6.5 to 8.5;
  • Maximum: 70m below the static water table.
Certificate
Certificate
Application Fields
  • Building/construction work/domestic water supply;
  • Irrigation and small water work;
  • Landscaping;
  • Water conservancy system;
  • Factory.
Features
  • Available with stainless steel pump head, effective against the corrosion and abrasive wear;
  • Edible oil filled motor, stable& reliable running with pressure regulating membrane;
  • Available with controller box, bring about general protection;
  • Installation in 6" or larger boreholes.
Optional Available On Request

Discharge chamber is available with 3"or 4"

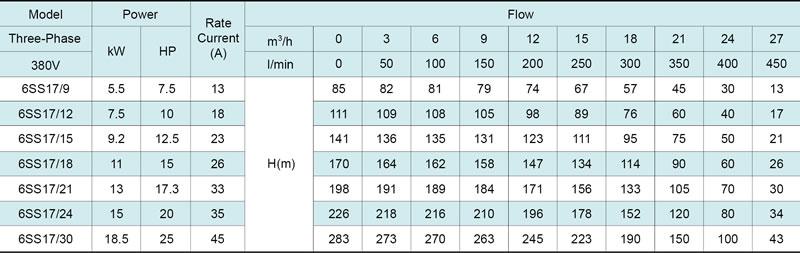

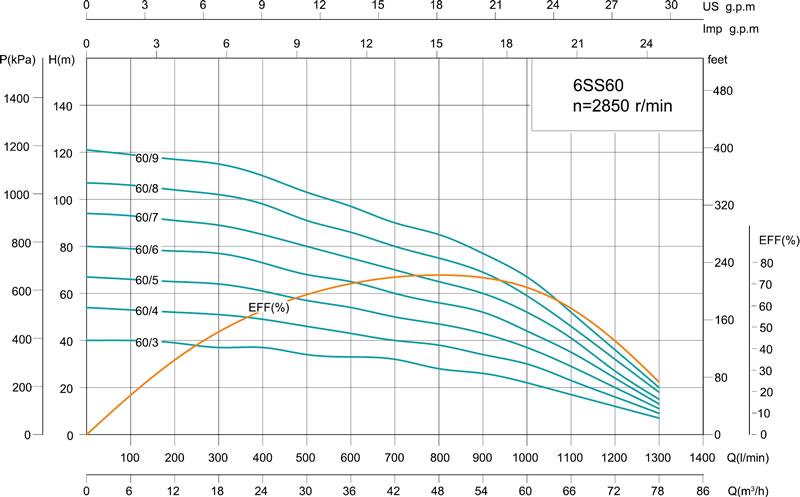

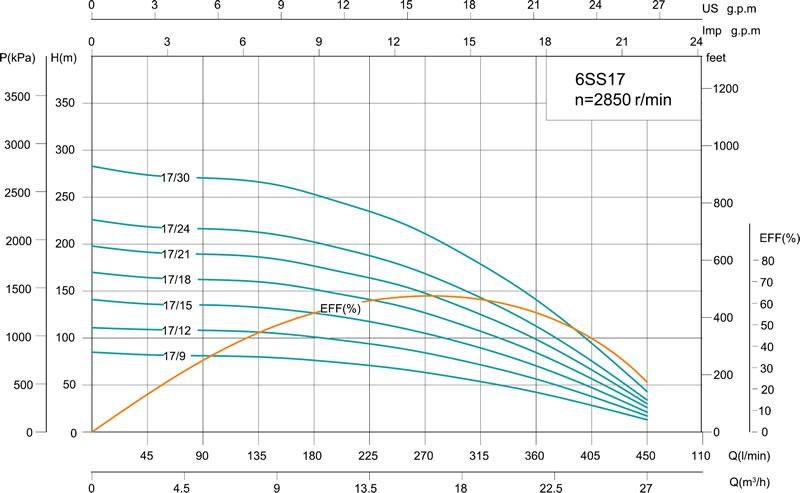

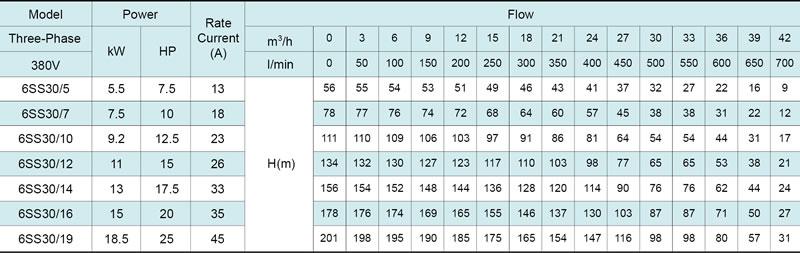

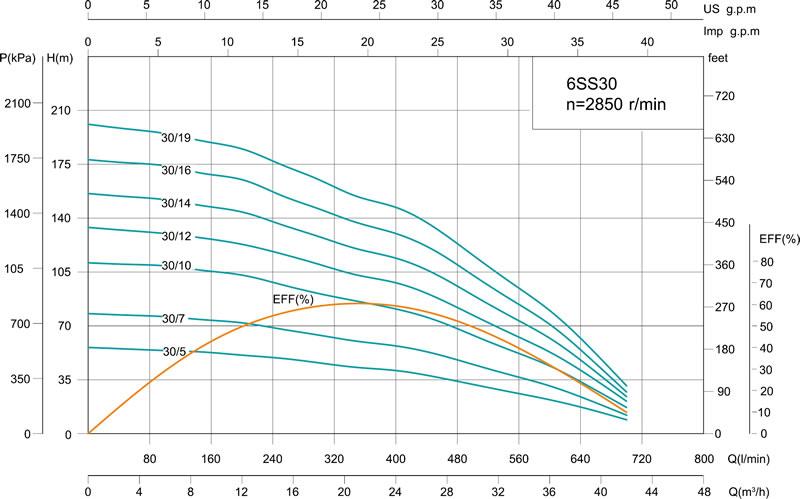

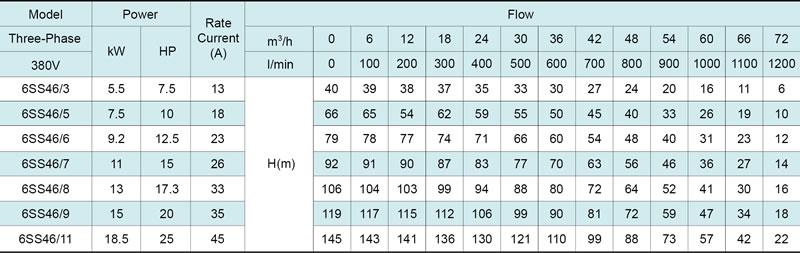

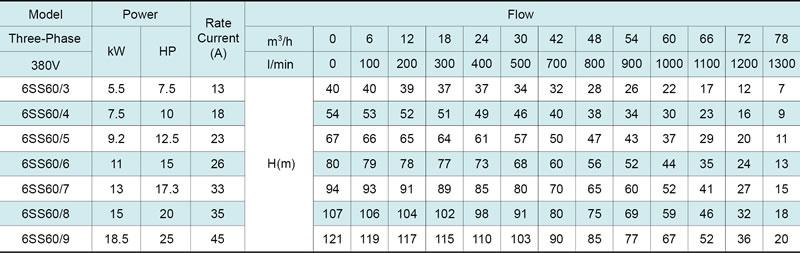

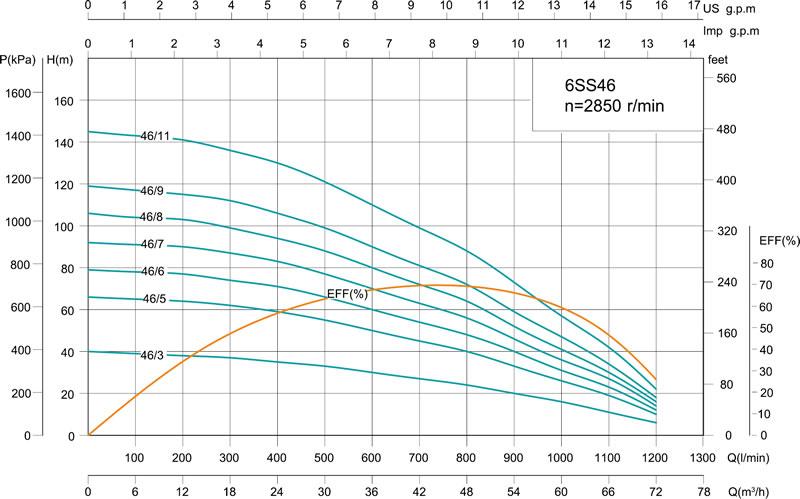

Performance Curve
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
6SS 6' Deep Well Pump
